IP/MPLS Router on the EcoRouter platform

IP/MPLS Router


IP/MPLS routers designed to carry out critical functions in the networks of telecom operators at the levels of aggregation, distribution, core, network boundary (ASBR).

Advantages and Features

EcoRouter series routers are multi-purpose state-of-the art devices that support a wide range of technologies – both traditional IP routing and Multi-Protocol Label Switching (MPLS). The equipment can be used at all levels of telecom operators and corporate networks.

EcoRouter Devices:

  • developed using unified hardware components based on Intel integrated circuits;
  • mounted in a standard 19″ telecommunication rack;
  • have an optimal form factor from 1 RU to 2 RU;
  • low power consumption;
  • have a single operating system EcoRouterOS;
  • available in both fixed and modular versions, which allows you to choose the optimal configuration for solving the tasks of telecom operator.

EcoRouter throughput provides up to 320 Gbps per device and allows to work with large routing tables (up to 5 million routes in FIB).

EcoRouter series routers support the following functionality:

  • IPv4 unicast routing (Static, RIP, OSPFv2, IS-IS, MP-BGP);
  • IPv4 multicast routing (IGMPv1/v2/v3, PIM-DM / SM / SSM);
  • MPLS traffic switching;
  • LDP / Targeted LDP;
  • MPLS L3 VPN implementation;
  • Pseudowire MPLS technology with the support of the Pseudowire Redundancy mechanism;
  • VPLS (LDP-based) support;
  • Flexible mechanisms for manipulating VLAN tags on Ethernet interfaces (push/pop/swap);
  • DHCP Relay and DHCP Proxy operation modes;
  • IP traffic tunneling using GRE and IP-in-IP encapsulation;
  • VRRP redundancy protocol;
  • Hierarchical Quality of Service (H-QoS);
  • Safety functions (L3/L4 ACL, CoPP, etc.);
  • SSH and Telnet management with authentication using TACACS+ and RADIUS servers;
  • SNMP v1/2/3, SNMP Trap and Syslog support for integration with monitoring and statistics collection systems;
  • Container virtualization technology.

A large set of functions, the possibility of combining L2 and L3 services, support for MPLS technologies – all these allow telecom operators and enterprises to simplify the architecture of their network, as well as to improve the quality and reliability of services provisioning. At the same time, a significant reduction in both capital and operational costs for network maintenance and operation is ensured.

The built-in virtualization technology makes it possible to run arbitrary third-party applications on the same device and deploy additional network services: AntiVirus / AntiSpam, IDS / IPS, and creation of secure tunnels using IPsec encryption or GOST 28147–89. Such functions increase the safety of nodes, making the services of telecom operators more attractive to subscribers. Owners of corporate networks are able to reduce costs by using a minimum set of equipment when creating communication nodes in branches.

EcoRouter CLI Demo

In this Demo: SSH connection to the router, the basic principles of working with the device command line. The main operating modes, settings for L2 ports / L3 interfaces, binding interfaces to ports, and several commands of the ‘show’ group for debugging.

NIC compatibility matrix

NIC \ EcoRouter ModelI/O slots11011640610042008
NIC-4XGE-SFPP4x10GbE I/O card (SFP+ optical transceivers supplied apart)
NIC-8GE-TX8x10/100/1000 RJ-45 I/O card
NIC-4GE-TX4x10/100/1000 RJ-45 I/O card
NIC-8GE-SFP8x10/100/1000 RJ-45 I/O card (SFP optical transceivers supplied apart)
NIC-4GE-TX-4GE-SFP4x10/100/1000 RJ-45, 4x10/100/1000 SFP I/O card (optical transceivers supplied apart)
NIC-1EM2xE1 I/О card
NIC-2x25GE-SFP282x25GbE I/O card (SFP28 optical transceivers supplied apart)
NIC-2х40GE-QSFPP2x40GbE I/O card (QSFP+ optical transceivers supplied apart)
NIC-2x100GE-QSFP28*2x100GbE I/O card (QSFP28 optical transceivers supplied apart)
* Скоро будут доступны для заказа

Hardware Platforms

EcoRouter Low-end models

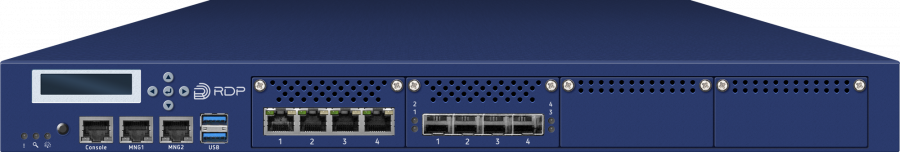

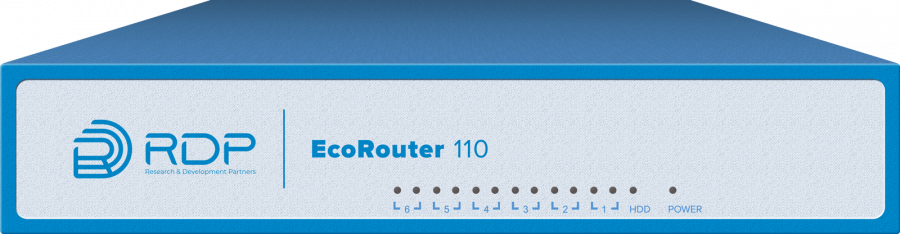

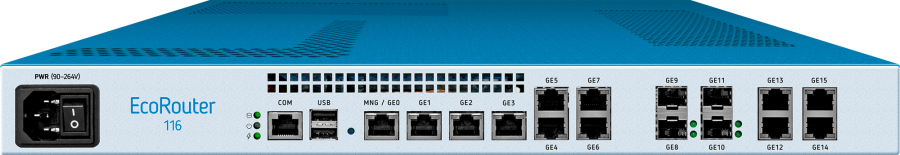

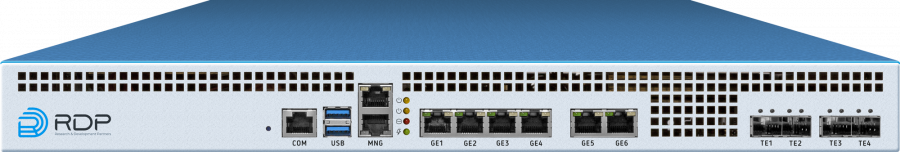

ModelEcoRouter 110EcoRouter 116EcoRouter 216*EcoRouter 406
Throughput6 Gbps16 Gbps26 Gbps26 Gbps
Form factorDesktop1 U1 U1 U
Network interfaces
— 1 GE Copper61246/10
— 1 GE Fiber (SFP)0440/2
— 10 GE Fiber (SFP+)0002/4
— E1**0200
Module slots0000
Extension slots0041
Data storageeMMC 5.0Industrial CFSSD Intel S4600 SeriesIndustrial mSATA SSD
Management interfaceRJ45RJ45RJ45
Console portRJ45RJ45RJ45RJ45
Power supply60 W External
Input: 100-240 VAC, 1.7 A
Output: 12 VDC, 5 A
200W ATX 100-240 VAC
Optional -10-36 VDC
1+1 300W RPC 100-240 VAC1+1 200W RPC 100-240 VAC
Optional -36-72 VDC
Cooling2 FansFanless4 Fans2 Fans
Dimensions (W х D х H)232 x 153 x 44 mm440 x 380 x 44 mm420 x 593 x 44 mm430 x 400 x 44 mm
* Присвоен статус ТОРП Минпромторга РФ.
** E1 is available in EcoRouter 116E1 modification.

EcoRouter High-end models

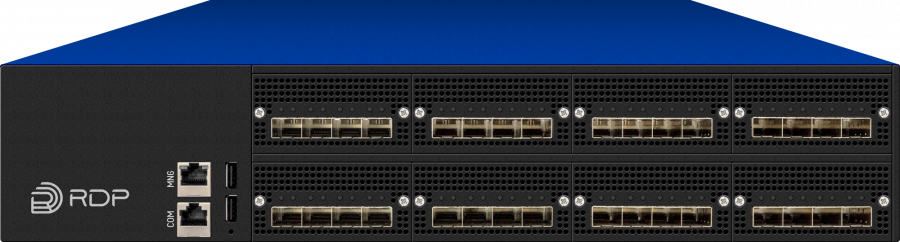

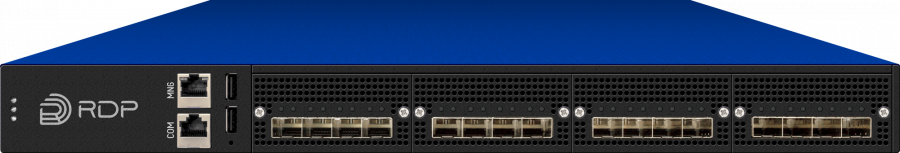

ModelEcoRouter 1004EcoRouter 2008
Throughput160 Gbps320 Gbps
Form factor1 U2 U
Module slots48
Extension slots11
Data storageIndustrial CFIndustrial CF
Management interfaceRJ45RJ45
Console portRJ45RJ45
Power supply1+1 300W ATX
100-240 VAC
1+1 600/400W ATX
100-240 VAC
Cooling4 Hot Swap, Smart Control4 Hot Swap, Smart Control
Dimensions (W х D х H)440 x 580 x 44 mm440 x 60 x 88 mm

Free test drive and configuration

Apply and we will provide you with test equipment on your network for free.
